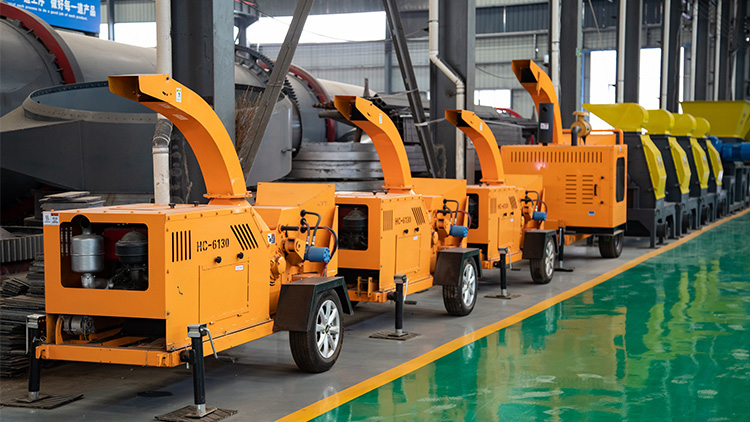

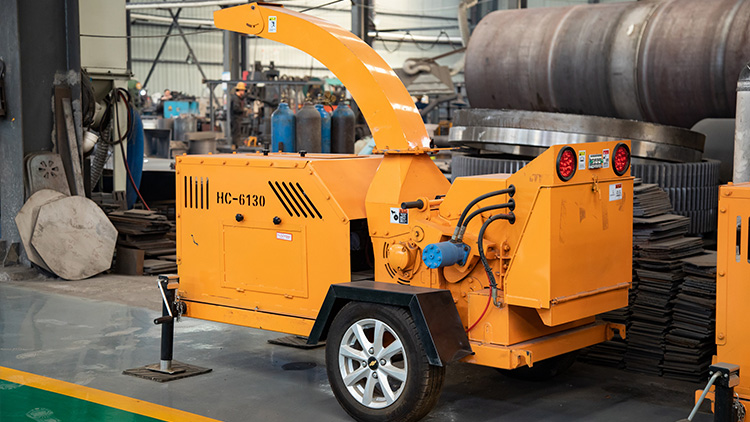

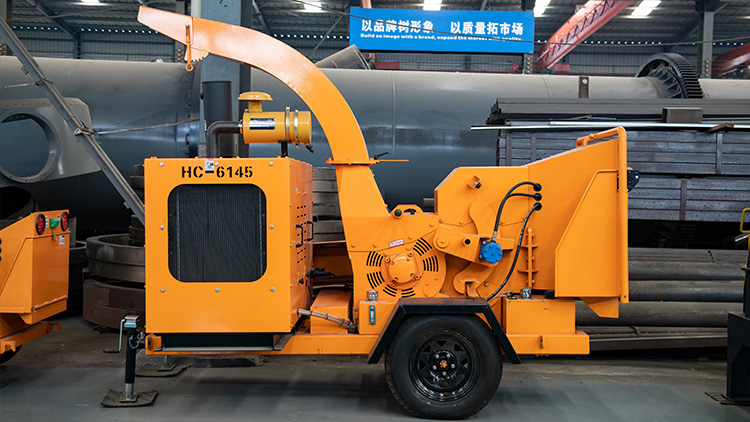

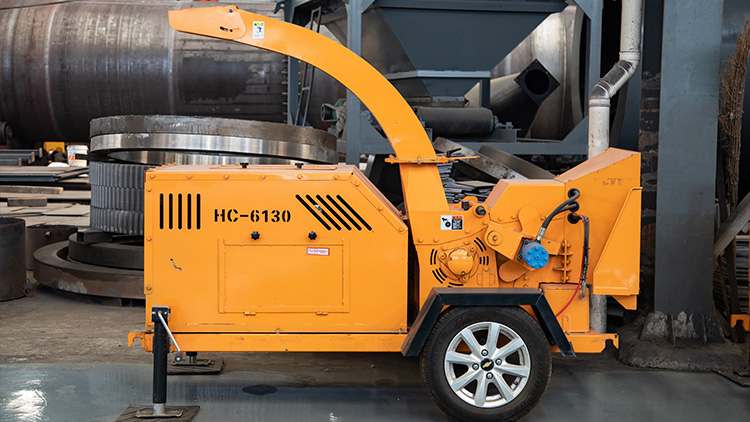

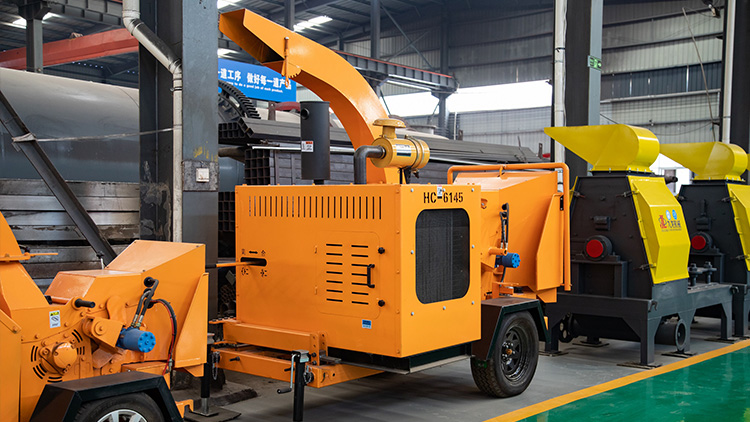

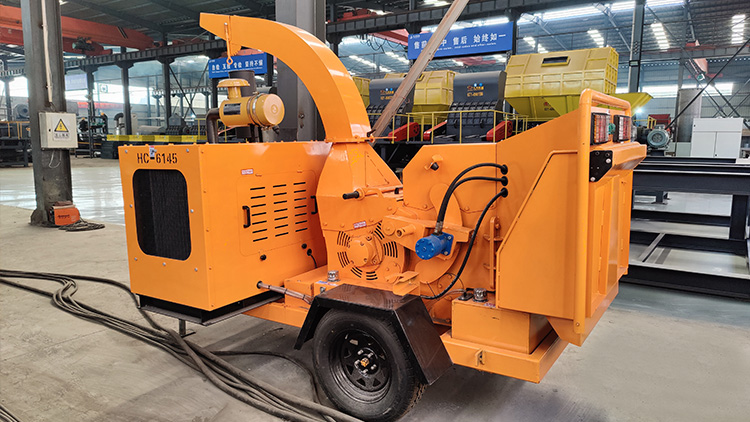

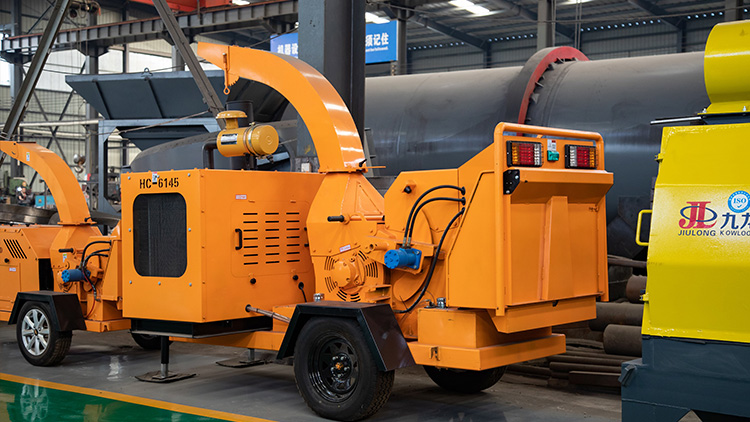

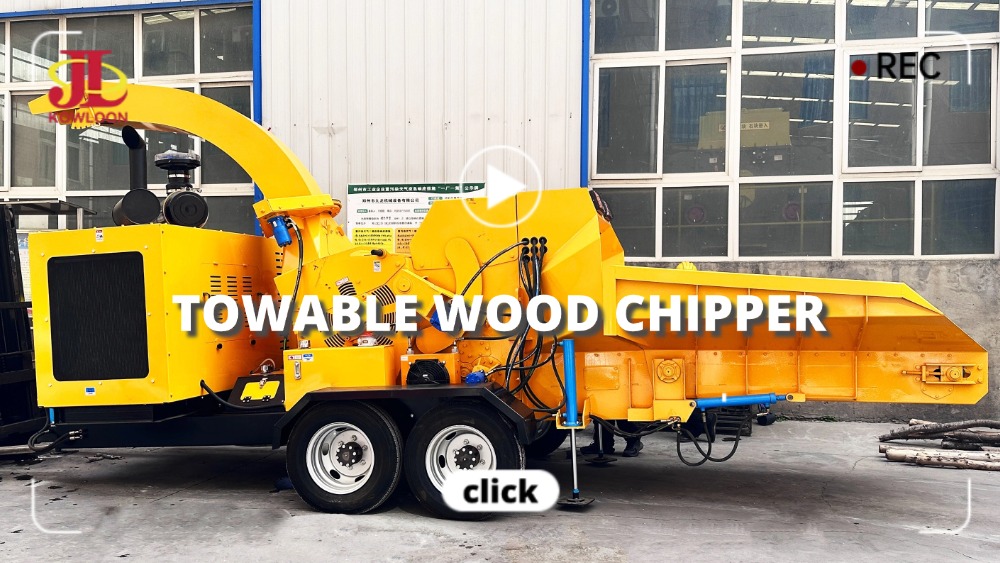

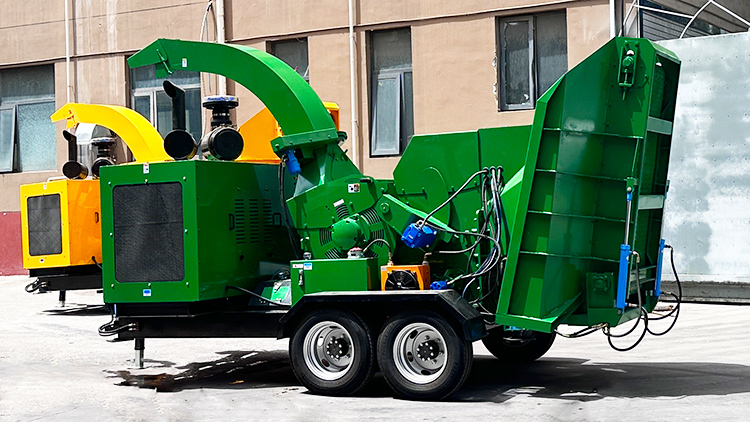

Towable Drum Chipper is mainly used to crush wood, branches, and bamboo after tree pruning. Has various advantages such as small size, small land occupation, low investment, high return, low energy consumption, high efficiency, easy to use, and maintenance.
The chips can be directly sprayed into the transport vehicle, the volume reduced 80% - 90%, reducing transportation cost and saving manpower, and the output chips particle size is adjustable. The chipped products can be widely used in wood mulch, garden bed base, organic fertilizer, edible fungi, biomass power generation, also be used as raw material of high-density board, particleboard, paper industry, etc.
Towable Drum Chipper is suitable for crushing bark, leaves, wet branches, wood strips, coconut shells, bamboo, twigs, dumb branches, waste wood and other materials.
Widely used as special supporting equipment for industrial production, such as gardens, orchards, forestry, road tree maintenance, city parks, bamboo factory, community greening, waste wood recycling station, furniture factory, etc.
Branches
Tree Logs
Bamboo
Wood Waste
Sugarcane
1. Driven by diesel engine, with wheels, platform and traction device, can be moved flexibly, start work anytime and anywhere.
2. The front pressure roller can prevent the material from flowing back, ensuring safe use.
3. The discharge steering tube is equipped with a direction adjustment device for quick adjustment to facilitate crushing operations in different workplaces.
4. The steel frame structure adopts laser cutting and CNC processing. Durable, good performance and long service life.
|
Model |
TWC270 |
TWC570 |
TWC970 |
|
Infeed size |
300mm×200mm |
450mm×380mm |
1300×930mm |
|
Max. feed diameter |
≤100mm |
≤200mm |
≤300mm |
|
Dimensions (L*W*H) |
2300*1300*1800mm |
3000*1700*2400mm |
5200*2210*2900mm |
|
Chain plate feed conveyor |
/ |
/ |
2m length, folding part 1.2m length |
|
Feed conveyor hydraulic cylinder |
/ |
/ |
2units cylinders |
|
Feed conveyor hydraulic motor |
/ |
/ |
2units hydraulic motors |
|
Chipping rotor diameter |
500mm300mm |
500mm |
750mm |
|
Power |
32hp, Brand: Changchai (1-cylinder) |
102HP , Brand: Changchai (4-cylinder, turbo) |
197HP, Brand: Changchai (6-cylinder,turbo) |
|
Start mode |
Electric start |
||
|
RPM |
2600r/min |
2500r/min |
1600r/min |
|
Knife quantity |
Moving knife 4units, bottom blade 1unit |
Moving knife 6units, bottom blade 1unit |
|
|
Knife length |
155mm |
240mm |
215mm |
|
Feed roller diameter |
280mm |
500mm |
600mm |
|
Feed roller drive mode |
Hydraulic motor |
||
|
Hydraulic tank volume |
20L |
40L |
50L |
|
Fuel tank volume |
15L |
40L |
120L |
|
Feed gear |
Forward – Reverse – Stop, 3 gears manual control |
||
|
Tire size |
165/70R13 |
215/75r15 |
650/16R |
|
Tire rim size |
13” aluminum rim |
15” aluminum rim |
16” aluminum rim |
|
Generator power |
600W |
800W |
800W |
|
Battery |
12V 105aH |
24V 105aH |
24V 105aH |
|
Spray direction |
360°quick adjusting device |
||
|
Accessories |
Taillight, feed light, collapsible hand jack, traction height adjustable |
||
